Resizing Marks on a Dashboard

The problem

You’ve added a pie chart to a dashboard and need to resize the pie to fit a particular need – perhaps it’s floating over other elements or needs to fit into a certain space. Resizing the whole sheet is not always an option, so you switch back to the sheet and use the size slider. Unfortunately, you can’t see the changes in size in context with the other elements on your dashboard, which can lead to some back and forth to get to the right size.

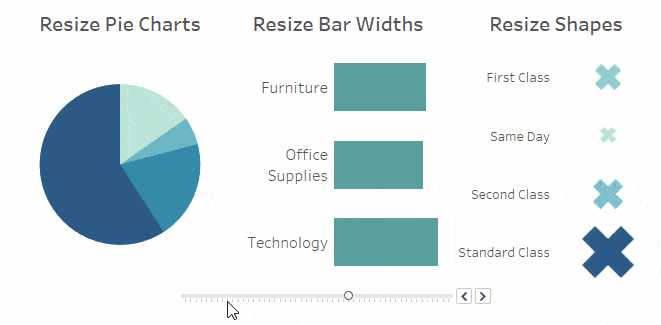

For example, let’s say I want the pie chart in the below dashboard to sit on the floating pink bar for some reason. Here’s me trying to make that happen:

One solution is to add a parameter to the size shelf.  Let’s walk through the process.

Create a Size Parameter

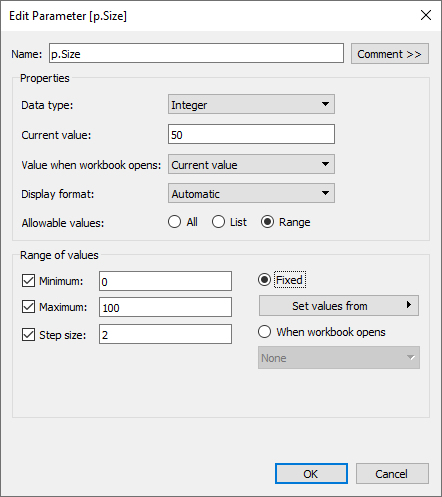

First, create a Range based parameter (Min: 0, Max:100) with a small Step size:

Add the Parameter to the Size Shelf

When you first place the parameter on the size shelf and change the value you’ll see the mark size doesn’t change:

Fix the Start and End values

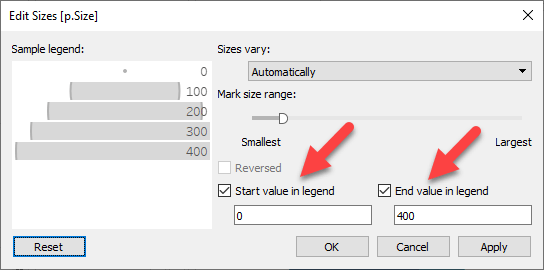

To make this work you need to fix the start and end values from the size legend:

Why 400?  Usually this can be set to 100, but for pie charts you want this to be 100 (the max size allowable for the parameter) multiplied by the number of segments in the pie chart, which is four in this case.

Now it works:

You can then add the chart to a dashboard, show the parameter and resize the pie chart as needed in context with all other elements on your dashboard.

Resizing Other Mark Types

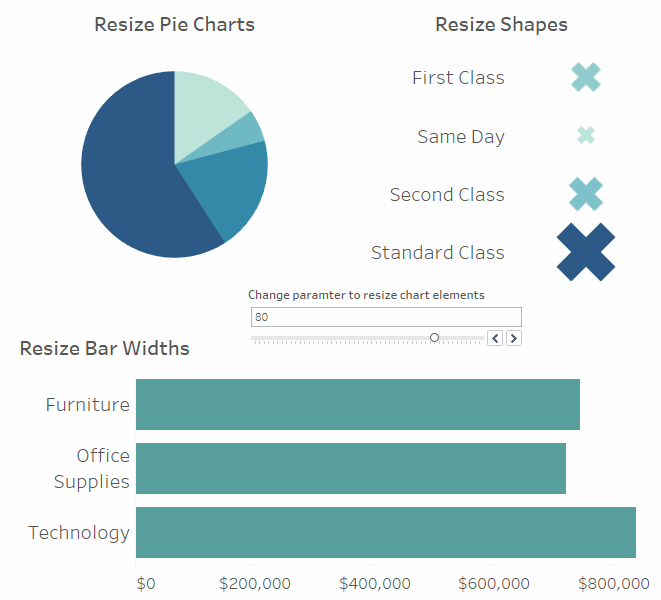

This technique also works for bar widths, shape sizes and so on. Below is a dashboard with various mark types all being resized with one parameter. You could, of course, use separate parameters if needed:

Custom Calculation for Size

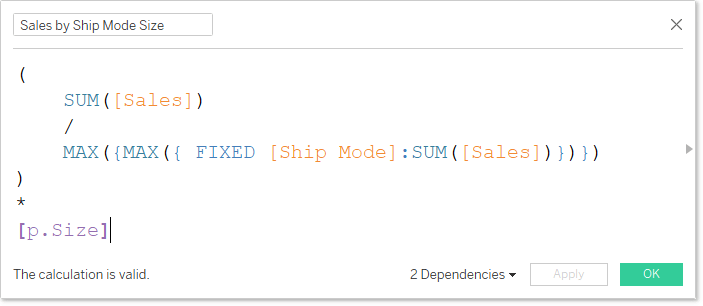

In the case of the shapes example above, the shapes are also being sized with a measure (sum of sales), so in this case a custom calculation is used in place of the parameter that normalises the sales value to a value between 0 and 1 and then multiples that by the parameter value:

Workbook

You can download the workbook I used for this blog post here.

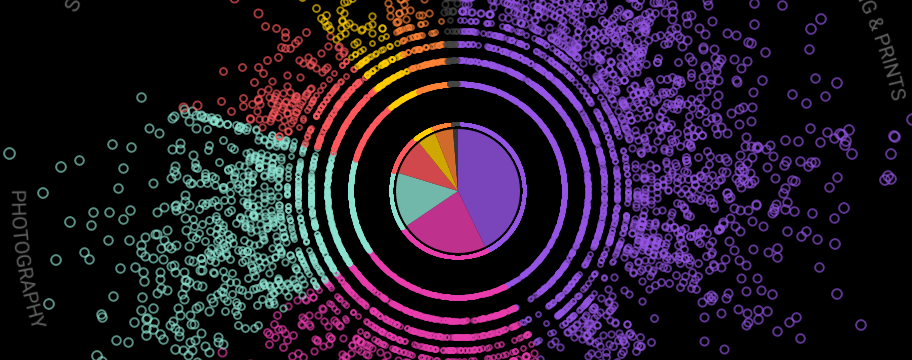

By the way, this was the technique I used to resize the pie chart in the middle of this radial plot for this visualisation of MoMAs works of art

I hope this is helpful for those custom sizing requirements.

Thanks for reading.
Marc Reid
